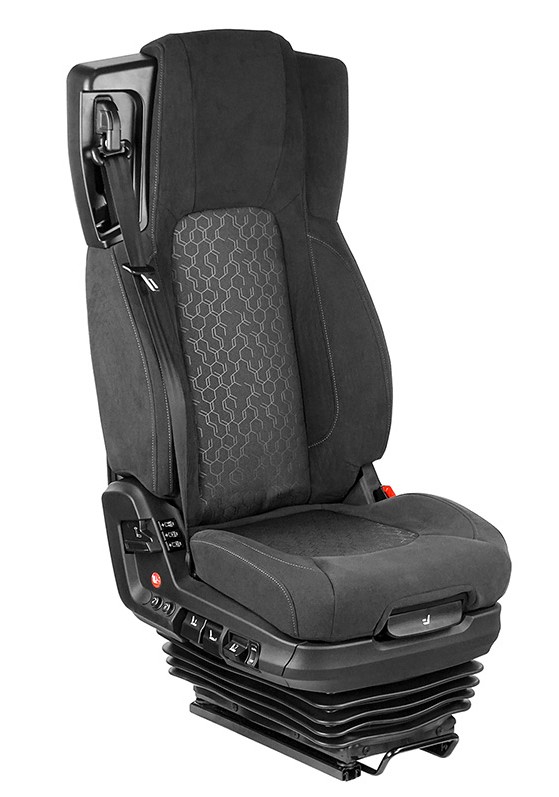

VOYAGER air seat C75 Truck Coach United

In Stock

Standard features Voyager C75 Premium fabric

  • Heating 12V integrated (continuous)
  • Air cooling (continuous)
  • Automatic air suspension
  • Pneumatic height adjustment 90 mm ± 10 mm
  • Total suspension travel 140 mm ± 20 mm
  • Quick release valve (dump valve)
  • Dual pneumatic lumbar support 30 mm (2 positions upper + lower)
  • Pneumatic adjustable side bolsters
  • Adjustable damper with 5 settings
  • Seat depth adjustment 50 mm
  • Seat tilt mechanism (11° up and 4° down)
  • 3-point safety belt with switch (left side or right side)
  • Height adjustable seat belt (3 positions)
  • Backrest adjustment (30° forwards and 40° backwards)
  • Slide rail travel 190 mm
  • Slide rail centre 216 mm
  • Deluxe fabric trim
  • Integrated headrest
  • Meets EU safety standards ECE-R16 (3-point safety belt)
  • Meets EU safety standards ECE-R17
(headrest strength)
  • Meets UN Regulations no. 14R09/02

Options

  • Adjustable deluxe armrests
  • Left and right hand seat variants available
  • Bespoke trims
SKU: C70-1 Category: Tags: , , ,

Description

VOYAGER air seat C75 drivers.

The C70 and C75 have same suspension .

All therefore can be replaced by above seat .

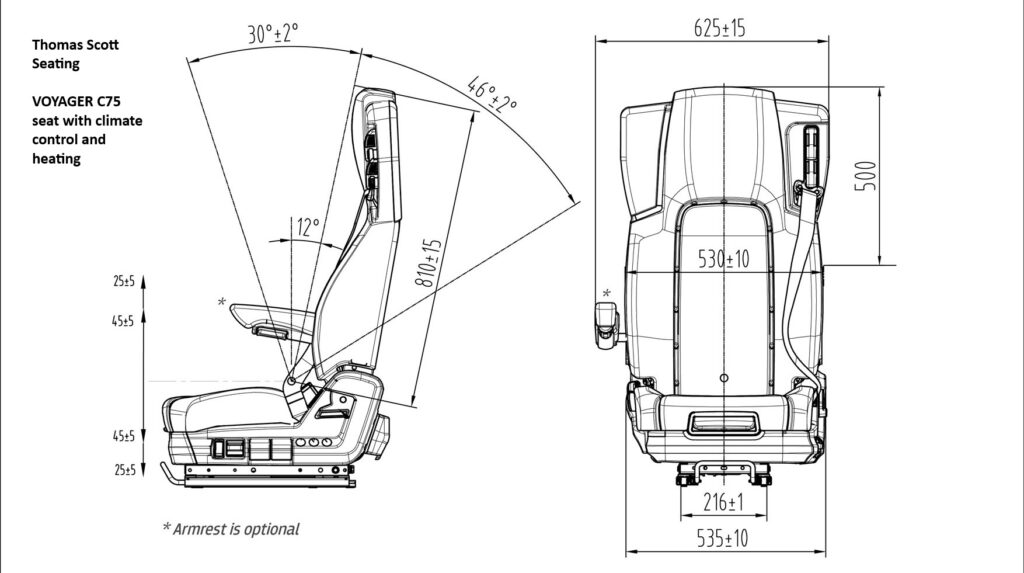

aLSO SEE DRAWING FOR FITTING SIZES..

Therefore plates fitted for use in most coach truck.

MGV120/C8 LGV120/C8 Harness seat suspension – BUY HERE !

DS85/H90 seat Cushion set Black fabric or PVC – BUY HERE !

We also offer a wide choice of VOYAGER AIR seat C75. Also spare parts suitable for all vehicle type. If you require a certain model or are looking for bulk buying for trade supply , contact us on 01236 421835 . Also therefore if you require extra technical help. Please phone or email us and we will be happy to assist.

Our sales team are always ready to help and help you with any United C75.

info@drivers-seats.com

Started in 1924. Thomas Scott Seating have been supplying special seat Voyager to all modes of business.

VOYAGER air seat ORDERED HERE ARE THEREFORE SHIPPED NEXT DAY DELIVERY.

We supply seats for the following makes and many more:-
John Deere, Massey, Case, New Holland, Caterpillar and Terex. Therefore Volvo Construction, Daewoo, Deutz, Komatsu, Renault and Scania. Also DAF, ERF, Mercedes, Man, Scammel, Dennis and Alexander.
Grammer Spare Parts Are Available Usually From Stock For Most Popular Types Of Seats.

We are main dealer for KAB Seating, Grammer, SEARS and ISRI, UNITED SEATS and SPRINGFIELD MARINE. We can also find other types of chair and can build bespoke Rancher.
You may have already seen us at many indoor and outdoor shows. Also throughout the year or our adverts.
VOYAGER air seat therefore easily sent with mounting plate (where needed).
We can change any of our UNITED seat to meet any individual idea each customer may have:
fabric and leather cover
Adjustable headrest
UNITED cushion switch
Mounting pedestal for marine chair
Replacement spares for all seat
Tiltable armrest UNITED
Cushion heater

mi560 seat pan

RANCHER air

VOYAGER air seat C75

DS85/H90 seat

tractor seat DS85/C1

AIR or Mechanical suspension
Brackets for fitment to most vehicle

Full covering services besides are available. Also supply of fabric, Vinyl replacement covers for air seat fitting.

WWW.GRAMMER.COM

Additional information

Weight 48 kg
Dimensions 100 × 80 × 80 cm
